Stokes’ Flow Elements

Stokes’ Flow Elements

Stokes’ flow elements neglect acceleration, and thus requires no additional stabilization.

Tr21Stokes element

Standard 6 node triangular element for stokes flow, with quadratic geometry, velocity and linear pressure. Both compressible and incompressible material behavior is supported (and also the seamless transition between the two). The element features are summarized in Table 57.

Table 57 Tr121Stokes element summary

Keyword

Tr121Stokes

Description

Standard 6 node triangular element for stokes flow, with quadratic geometry, velocity and linear pressure

Parameters

NIP: allows to change the default number of integration point used, possible values are 8, 27 (default) and 64.

Unknowns

Unknown pressure in nodes 1–3 with unknown velocity (V_u and V_v) in all 6 nodes.

Approximation

Quadratic approximation of geometry and velocity, linear pressure approximation.

Integration

Features

-

Status

Reliable

Tet21Stokes element

Standard 10 node tetrahedral element for stokes flow, with quadratic geometry, velocity and linear pressure. The element features are summarized in Table Table 58.

Table 58 Tet21Stokes element summary

Keyword

Tet21Stokes

Description

Standard 10 node tetrahedral element for stokes flow, with quadratic geometry, velocity and linear pressure

Parameters

NIP: allows to change the default number of integration point used, possible values are 8, 27 (default) and 64.

Unknowns

Unknown pressure (P_f) in nodes 1–4, and unknown velocity (V_u, V_v, V_w) in all nodes.

Approximation

Quadratic approximation of geometry and velocity, linear pressure approximation.

Integration

Features

-

Status

Untested

Hexa21Stokes element

Standard 27 node hexahedral element for stokes flow, with quadratic geometry, velocity and linear pressure. The element features are summarized in Table Table 59.

Figure made with TikZ

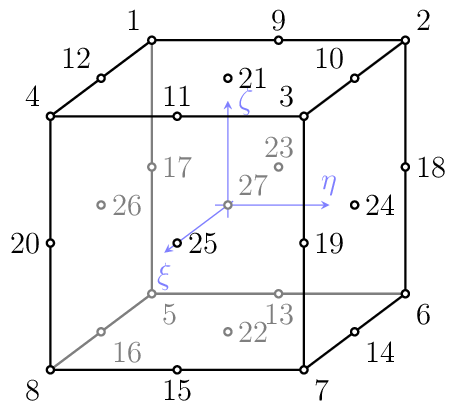

Fig. 26 Hexa21Stokes element. Node numbering and face numbering.

Table 59 Hexa21Stokes element summary

Keyword

Hexa21Stokes

Description

Standard 10 node tetrahedral element for stokes flow, with quadratic geometry, velocity and linear pressure

Parameters

NIP: allows to change the default number of integration point used, possible values are 8, 27 (default) and 64.

Unknowns

Unknown pressure (P_f) in nodes 1–8, and unknown velocity (V_u, V_v, V_w) in all nodes.

Approximation

Quadratic approximation of geometry and velocity, linear pressure approximation.

Integration

Features

-

Status

Untested

Tr1BubbleStokes element

So called “Mini” element in 2D. A 3 node triangular element for stokes flow, with linear geometry and pressure. Velocity is enriched by a bubble function. Should not be used with materials that have memory (which is uncommon for flow problems). The element features are summarized in Table 60.

Table 60 Tr1BubbleStokes element summary

Keyword

Tr1BubbleStokes

Description

So called “Mini” 2D element

Parameters

NIP: allows to change the default number of integration point used, possible values are 8, 27 (default) and 64.

Unknowns

Unknown pressure (P_f) in all nodes, and unknown velocity (V_u, V_v) in all nodes and one internal dof manager.

Approximation

Linear geometry and pressure. Velocity is enriched by a bubble function.

Integration

Features

-

Status

Untested

Tet1BubbleStokes element

So called “Mini” element in 3D. A 4 node tetrahedral element for stokes flow, with linear geometry and pressure. Velocity is enriched by a bubble function. Should not be used with materials that have memory (which is uncommon for flow problems). The element features are summarized in Table 61.

Table 61 Tet1BubbleStokes element summary

Keyword

Tet1BubbleStokes

Description

So called “Mini” 3D element

Parameters

NIP: allows to change the default number of integration point used, possible values are 8, 27 (default) and 64.

Unknowns

Unknown pressure (P_f) in all nodes, and unknown velocity (V_u, V_v) in all nodes and one internal dof manager.

Approximation

Linear geometry and pressure. Velocity is enriched by a bubble function.

Integration

Features

-

Status

Untested
